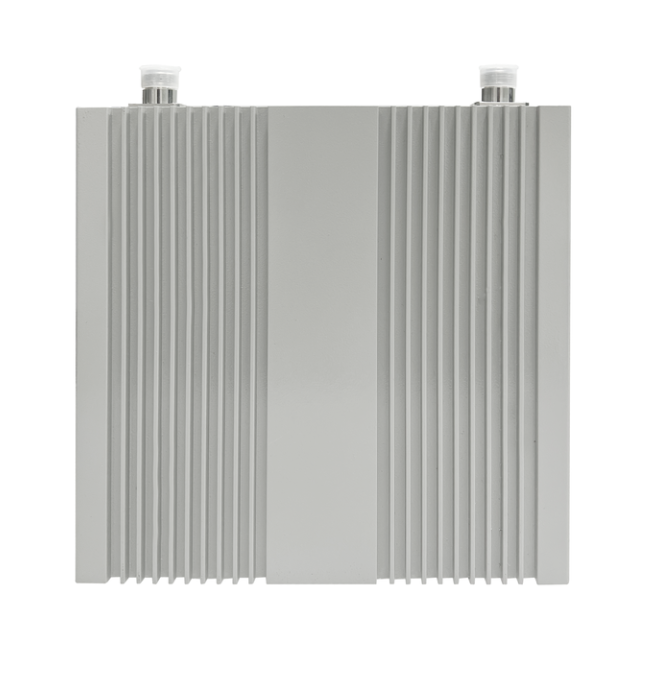

900/1800MHz Dual Band Digital Selective Internet Network Signal Amplifier For Home

Name: 9001800MHz Dual Band Digital Selective Internet Network Signal Amplifier For Home
Brand: ATNJ
Price: 300 USD

China 900/1800MHz Dual Band Digital Selective Internet Network Signal Amplifier For Home wholesale

Brand Name : ATNJ

Model Number : AS-140-GD

Certification : CE,ROHS，CCC，TUV,BV， ISO

Place of Origin : China

MOQ : 5Pcs

Price : USD+300---320+pcs

Payment Terms : T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability : 1000+unit+per day.

Delivery Time : 3 work days

Packaging Details : Standard neutral packing,48x46x18cm(1pcs),

900MHz Frequency Range : 880–915MHz/ 925–960MHz

1800MHz Frequency Range : 1710–1785MHz/1805–1880MHz

900MHz Bandwidth : 35MHz, supports 1 subband from 0.2 to 20 MHz adjusted

1800MHz Bandwidth : 75MHz, supports 1 subband from 0.2 to 20 MHz adjusted

Local Control : WIFI/ Type-C Port, Bandwidth Adjustment Could Be Done By Type-C Only

Remote Control : Cloud WEB Platform By SIM Card

Gain : UL:65dB DL:70dB

Output Power : UL:15dBm DL:≥17dBm

RF Connector(Customers to Choose) : N -Type (Female)

Contact Now

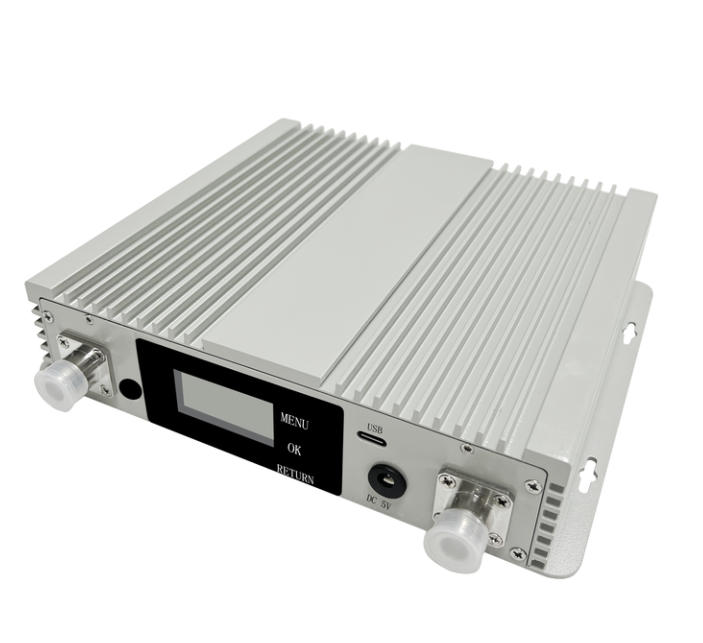

Cellular Repeater 900/1800MHz Dual Band Digital Selective Internet Network Signal Amplifier For Home

Selling Point

① Intelligent to guide the installation with LCD

② Real time display the signal strength.

Automatic dormancy when no user make the calling .

③ Automatic alarm when installation mistake and provide the according solution .
④ Automatic adjust the system gain to avoid the repeater self-excitation .
⑤ Initiative reminding when the device was damaged .
⑥ Supports from 0.2 to 20MHz bandwidth adjusted(Customized) ,Supports 5G bandwidth,40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .

⑦ WIFIMonitor+Control(Customized),NMS(network management system),Function Optional .

Further detail pls click here for downloading the products specification:

Technical Specifications:

SPECIFICATIONS		PARAMETERS
Frequency Range		900MHz	UL880–915MHz, DL925–960MHz
		1800MHz	UL1710–1785MHz, DL1805–1880MHz
Bandwidth		900MHz	35MHz, supports 1 subband from 0.2 to 20 MHz adjusted
		1800MHz	75MHz, supports 1 subband from 0.2 to 20 MHz adjusted
Gain		UL:65dB DL:70dB
Output Power		UL:15dBm DL:≥17dBm
Automatic Gain Control		31dB
MGC (Step Attenuation)		20dB@ 1dB/Step
Spurious Emission	9 kHz -150 kHz/1kHz	≤-36dBm
	150 kHz - 30 MHz/10kHz	≤-36dBm
	30 MHz - 1 GHz/100kHz	≤-36dBm
	1 GHz- 12.75 GHz/1MHz	≤-30dBm
ACPR		Downlink Fully comply with 3GPP 36.106
		Fully comply with 3GPP 36.106
Unwanted emissions		Fully comply with 3GPP 36.106
Out Of Band Gain	900MHz	1MH≤f_offset＜5MHz, UL:≥30 dB,DL:≤ 30 dB
	1800MHz	1MH≤f_offset＜5MHz, UL:≥ 30 dB,DL:≤ 30 dB
EVM		≤8
VSWR		≤2
Ripple	900MHz	≤6dB
	1800MHz	≤6dB
Noise Figure		≤8dB
Delay		≤3μs
I/O Impedance		50Ohm
RF Connector(Customers to Choose)		N -Type (Female)
Remote Control		Cloud WEB platform
Local Control		WIFI/Type-C port
Operating Temperature		-25°~+55°
Power Supply		DC 5V/5A
Power consumption		≤75W
Environment Conditions		IP43
Humidity		≤90%
Weight		≤3kg
Size		23423052 (mm)

Product Description

900/1800MHz Dual Band Digital Selective Internet Network Signal Amplifier For Home

Shipping

●We will send your parcel as soon as possible after payment confirmed within 48 hours.

●Please provide your correct address,full name,and zip code.
●We generally would declare the parcel with lower value to avoid or lessen the Customs Tax.Import Tax is not including in the price. When it happens, it is buyers responsibility to pay for the tax and custom clearance.
●Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like Fedex, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.

FAQ

Q1: Are you trading company or manufacturer ? Could I use our own logo and label?

A: We are factory, with trading service. We provide OEM/OEM service.

Q2: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.

Q3: How many square meters can be covered?
A: For different models, the covered square meters are different.

Q4: What is your warranty time?
A: We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

Q5: Please feel free to contact us if any other questions.
